Extra Range Bridge Plug

Wireline Set

Download document

The Extra Range Bridge Plug is a specialty plug for running through restrictions and then setting securely in larger diameters below. These restrictions such as seating nipples often force tubing to be pulled before well service can take place. The Extra Range Bridge Plug eliminates this in many cases.


Should the plug need to be removed, it is recommended to use a mill. A plug of such a broad setting range requires it to be made of mild steels and a milling process would be more acceptable.


FEATURES:


  • Electric wireline set

  • Millable

  • Sets in any grade casing including P-110

  • For temporary or permanent service

  • Ratcheting lock ring holds setting force

  • Runs through restrictions to set in larger diameters


SPECIFICATIONS

PLUG

SETTING RANGE

SETTING TOOL

PART NO.

O.D.

MIN.

MAX.

GO

001-1406-000

1.406

1.610

1.995

1 1/2 Shorty

001-1750-000

1.750

1.905

2.441

1 11/16 Multi-Stage

001-1906-000

1.906

2.156

2.765

1 11/16 Multi-Stage

001-2187-000

2.187

2.375

3.000

1 11/16 or 2 1/8 Multi-Stage

001-2281-000

2.281

2.441

3.343

1 11/16 or 2 1/8 Multi-Stage

001-2500-000

2.500

2.875

3.500

2 1/8 Multi-Stage

001-2750-000

2.750

3.187

3.920

2 1/8 Multi-Stage

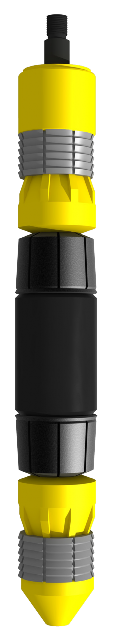

THIS ILLUSTRATION DOES NOT REFLECT ALL SIZES
